16 mm star tracker optic
- EFL 16 mm
- f/# 1.4
- Image Ø 6.8 mm
- Bands VIS NIR
Flight-proven
More than 100 in orbit. Supplied as optics and mechanics with a four-stage external baffle.
Home / Products / Refracting lenses
Refracting lenses
Most refracting lenses in this range are close to diffraction limited over the field and spectral range they are designed for, with achromatic or apochromatic colour correction.
- 28 designs from 13 mm to 400 mm focal length, UV to LWIR.
- Some lenses suit any sensor; others are matched to colour, monochrome or NIR-sensitive sensors, as shown in the notes for each lens.
- Ruggedised and athermalised to hold their specification from at least −20 °C to +60 °C.
- Baffled to suppress glint and the washed-out image a bright source such as the sun causes in or near the field.
- Every lens is tested and supplied with its measured MTF curve. Because of manufacturing tolerances, measured MTF is typically 5 to 10% below the design curve.
Built and flown
Selected lenses with photographs and datasheets.

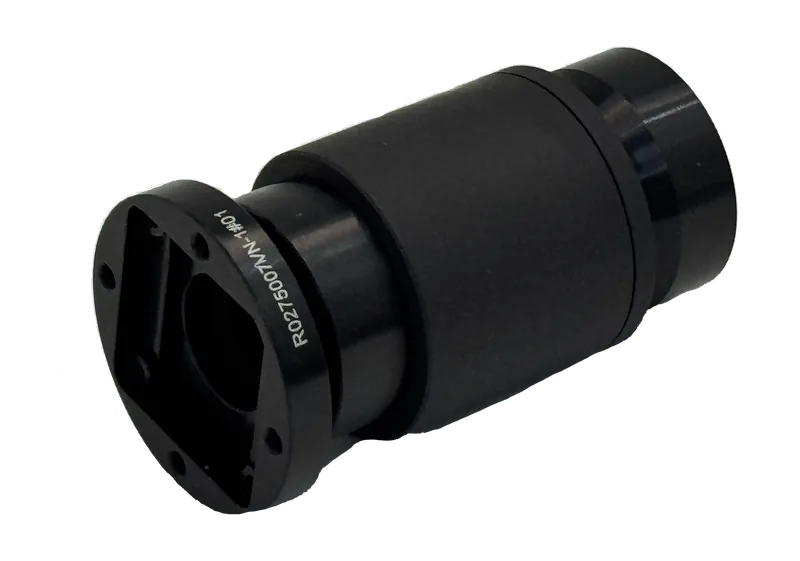

R27 f/5
R0275007VN
- EFL 27 mm
- f/# 5
- Image Ø 12 mm
- Bands VIS NIR
Built
A compact refracting lens built for space.

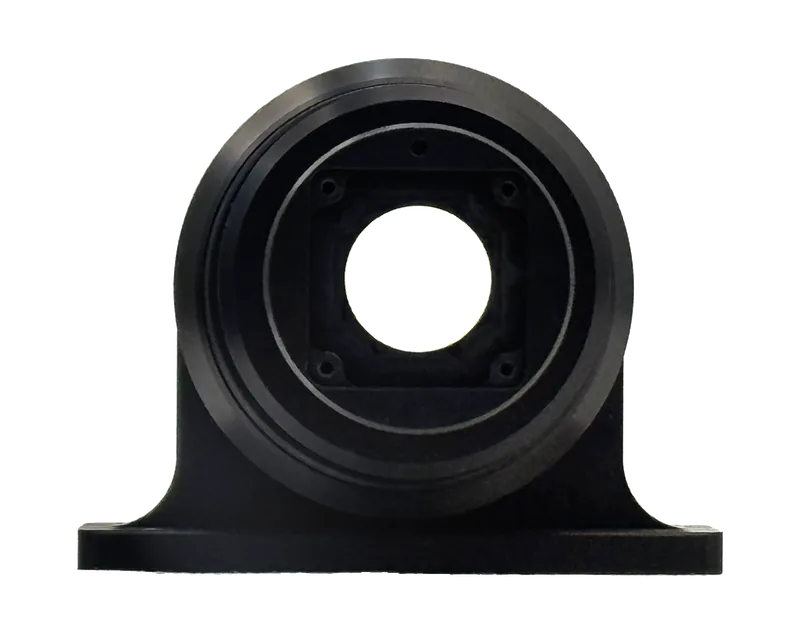

R180 f/4
- EFL 180 mm
- f/# 4
- Image Ø 12 mm
- Bands VIS NIR
Built
A refracting lens built for space.
R70 f/5 wide angle
R0705015VN
- EFL 70 mm
- f/# 5
- Image Ø 30 mm
- Bands VIS NIR
Built
Built for space. A multi-purpose wide-angle lens with a 30 mm image circle.
R400 f/5 Sumbandila camera lens
- EFL 400 mm
- f/# 5
- Image Ø 52 mm
- Bands VIS NIR
Flight-proven
Main camera optics for South Africa's Sumbandila satellite, launched in 2009.
Refracting lenses: full list
- Flight-proven
- Space-qualified
- Built
- Prototype
- Designed
- In development
| EFL (mm) | f/# | Image Ø (mm) | Bands | Status | Notes | Datasheet |
|---|---|---|---|---|---|---|
| 13 R0136004V | 6 | 6.8 | VISNIR | Not stated | Wide-field lens for gunner and commander sight | Request datasheet |
| 16 | 1.4 | 6.8 | VISNIR | Flight-proven | Built for space applications. More than 100 in orbit | Request datasheet |
| 17 | 5 | 6.8 | VISNIR | Designed | Request datasheet | |
| 20 | 1.5 | 6.8 | UVVIS | Designed | Request datasheet | |
| 21 | 1.56 | 6.8 | VISNIR | Flight-proven | Built, star camera. Several in orbit | Request datasheet |
| 25 | 1.4 | 6.4 | VISNIR | Flight-proven | Built for space applications. Several in orbit | Request datasheet |
| 25 | 5 | 7.2 | NIRSWIR | Designed | Request datasheet | |
| 27 R0275007VN | 5 | 12 | VISNIR | Built | Built for space | Request datasheet |
| 29 | 1.1 | 4 | VIS (mono) | Flight-proven | Built for space applications (monochrome). Several in orbit | Request datasheet |
| 30 | 6 | 8.8 | VISNIR | Built | Built, about 1,000 units. Gunner and commander sight | Request datasheet |
| 35 | 5 | 9.6 | VISNIR | Designed | Request datasheet | |
| 50 | 5 | 9.6 | SWIR | Designed | Request datasheet | |
| 50 | 5 | 19.2 | VIS | Built | Built. Stabilised sight with high-resolution digital zoom | Request datasheet |
| 55 | 5 | 6.8 | VIS | Designed | Request datasheet | |
| 65 | 5 | 8.8 | VISNIR | Built | Request datasheet | |
| 70 | 5 | 8 | NIR | Built | Built (a design also exists for VIS NIR) | Request datasheet |
| 70 R0705015VN | 5 | 30 | VISNIR | Built | Built for space. Multi-purpose wide angle | Request datasheet |
| 90 | 5 | 9.6 | VISNIR | Built | Built. Stabilised sight | Request datasheet |
| 100 | 1.4 | 8 | LWIR | Designed | Request datasheet | |
| 100 | 3 | 16 | NIRSWIR | Designed | Request datasheet | |
| 138 | 6 | 10 | VISNIR | Built | Built, about 1,000 units. Gunner and commander sight | Request datasheet |
| 140 | 3 | 10 | VISNIR | Designed | Request datasheet | |
| 180 | 4 | 12 | VISNIR | Built | Built for space | Request datasheet |
| 200 | 6 | 10.8 | NIR | Designed | Request datasheet | |
| 300 | 2.8 | 36 | VIS | Built | Built, for cinematography | Request datasheet |
| 327 R3275060VN | 5 | 120 | VISNIR | Designed | Designed only. 120 mm image diameter, excellent MTF | Request datasheet |
| 350 | 12 | 28 | VISNIR | Designed | Request datasheet | |
| 400 | 5 | 52 | VISNIR | Flight-proven | Built for the South African Sumbandila satellite, flown 2009 | Request datasheet |
Have a specification?
Tell us the focal length, f-number, spectral band, sensor and operating environment. We will tell you whether an existing design fits, or what a new one involves.
